A3 JB Data Acquisition Unit

Optionally select specification before requesting quote

Product Description

The SMT-A3 Wireless Data Acquisition unit is a multi- channel high precision measurement device designed to interface with a variety of different building sensors. The sleek design of the SMT-A3 allows it to be installed in occupied spaces in building units and homes. The SMT- A3 seamlessly attaches to a double junction box and supports up to eight external sensors with optional integrated sensors.



The 24-bit A/D and long range wireless proven on the SMT-A2 platform is duplicated on the SMT-A3 making it ideal for building monitoring in both new construction and retrofit work.



Options for integrated CO2, RH, temperature and differential pressure are available upon request.



The SMT-A3 communicates wireless sensor readings to the SMT Building Intelligence gateway. Optional powered repeaters can be used to extend the wireless range.





Click to view product datasheet

Applications

+

  • Permanent monitoring solutions

  • Remote sensor analysis and data collection

  • High precision data acquisition

  • Building science research

  • Targeted repair monitoring

Features

+

  • Supports up to 8 external resistance channels capable of reading wide moisture content ranges and precision thermistors.

  • Supports up to 8 0-5V sensors such as RH, pressure differential, LVDT, displacement, light sensors and more.

  • Supports up to 4 differential voltage inputs capable of reading sensors such as thermocouples, heat flux and more. Gain amplification boost circuitry is available to measure very small voltage differentials.

  • Optional integrated relative humidity and temperature sensors.

  • Sensors are installed using a two part terminal block permitting sensor lengths to be cut to their appropriate lengths and terminated prior to installing electronics.

  • Large internal memory allows an 8 channel unit to log hourly data for up to 3 years without extracting data.

  • Wireless transceiver with 1000m line of sight communication. Optional repeaters can be used to extend the wireless range.

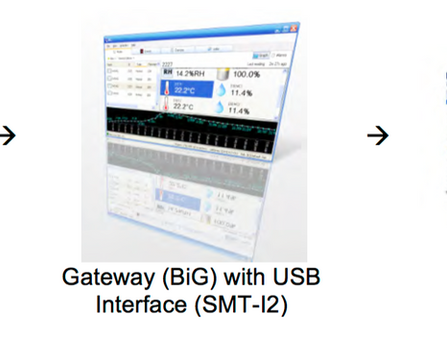

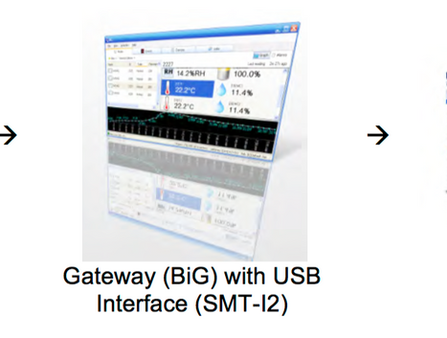

  • Communicates to SMT Building Intelligence Gateway (BiG) via USB to Wireless device; SMT-I2.

  • Extreme low power device and 3 AA battery pack makes the SMT-A3 suitable for long term battery operation.

  • USB connectivity supports data downloads, configuration and firmware upgrades.

  • Backlit LCD user interface for easy network and sensor verification

Functional Specifications

+

Measurement Specifications

Internal Temperature

Sensor: Cantherm MF58104F39590

             Beta 4390K

Range: -40°C to +70°C

Resolution: 0.1°C

Accuracy: ±1°C


Internal Relative Humidity (optional)

Sensor: Honeywell HIH-4000-001

Interchangeability: 0-59% RH ±5%

                             60-100% RH ±8%

Resolution: 0.5% RH

Accuracy: ±5% RH

Hysteresis: 3% RH

Repeatability: ±0.5%



Resistance

Range: 10Ω to 100Ω

Resolution: 1Ω

Accuracy: ±5%



Range: 100Ω to 100KΩ

Resolution: 10Ω

Accuracy: ±1%



Range: 100KΩ to 1GΩ

Resolution: 1KΩ

Accuracy: ±5%



Voltage

Range: 0Vto5V

Resolution: 100mV

Accuracy:  ±5%
