Linear Displacement Sensor - Basic

Optionally select specification before requesting quote

Product Description

The Model 404 sensor is a low cost sensor typically used for measuring large building materials where a resolution of 0.1mm is required. The LVDT sensor is recommended for applications that required a greater degree of accuracy.



Depending on the desired resolution and travel to be monitored, the following sensors are available:

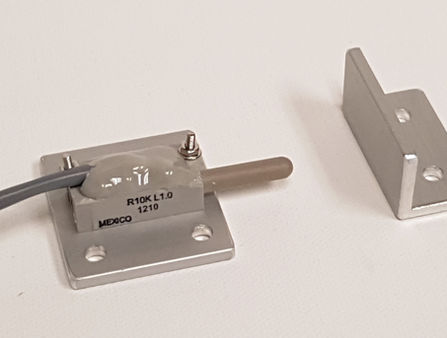

Model 404 BI Technologies
Spring return linear actuation conductive plastic position sensor.

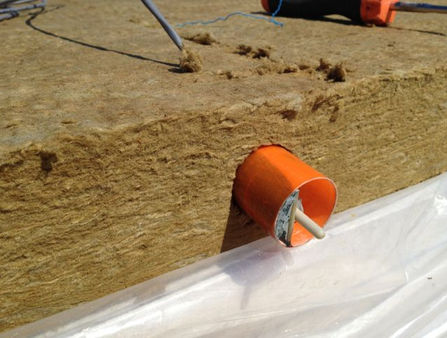

Typical Applications include structural beam travel and construction material shrinkage and movement.



Click to view product datasheet

Features

+

  • 0.5 inch travel, linear motion with spring
  • Accurate position feedback
  • Low cost
  • Compact design for small spaces
  • Conductive plastic technology
  • Long life - 5 million actuations
  • 8 sensors per SMT Industrial WiDAQ

Industrial WiDAQ (8 Resistance Channels)

+

Wire resistance pairs to channels 17 to 24.
Example pin-out for channel 17:

WiDAQ Inputs Sensor Pin Function
17-1 1 Displacement
17-2 2 Displacement

Functional Specifications

+

Model 404 Electrical Characteristics

Resistance Range: 1KΩ to 150KΩ

Standard Resistance Tolerance: ±10%

Minimum Practical Resistance Tolerance: ±5%

Independent Linearity: ±1%

Minimum Practical Independent Linearity: ±0.5%

Input Voltage, Maximum: 400VDC

Power Rating: 0.25W at 70ºC

Dielectric Strength: 1000V rms

Insulation Resistance, Minimum: 1000MΩ

Actual Electrical Travel, Nominal: 0.50” ± 0.15 (12.7mm ±0.38mm)

Resolution: (with WiDAQ) 0.003” (0.085mm)

Temperature Coefficient: -800 ppm/ºC



Environmental

Operating Temperature: Static: -55° to 125°C. Dynamic: -40° to 125°C

Load Life: 1 million full 5 million dither cycles.



Mechanical

Total Mechanical Travel: 0.56” ± 0.015” (14.2mm ±0.38mm)

Actuating Force, Maximum: 14 oz

Backlash, Maximum: 0.03”

Static Stop Strength: 20 lb

Body Style: Rectangular

Termination Style: Turret Terminals

The Model 404 sensor is a low cost sensor typically used for measuring large building materials where a resolution of 0.1mm is required. The LVDT sensor is recommended for applications that required a greater degree of accuracy.



Depending on the desired resolution and travel to be monitored, the following sensors are available:



Model 404 BI Technologies
Spring return linear actuation conductive plastic position sensor.



Typical Applications include structural beam travel and construction material shrinkage and movement.



Click to view product datasheet

Linear Displacement Sensor - Basic

    • 0.5 inch travel, linear motion with spring
    • Accurate position feedback
    • Low cost
    • Compact design for small spaces
    • Conductive plastic technology
    • Long life - 5 million actuations
    • 8 sensors per SMT Industrial WiDAQ
