I3 Gateway Interface

Optionally select specification before requesting quote

Product Description

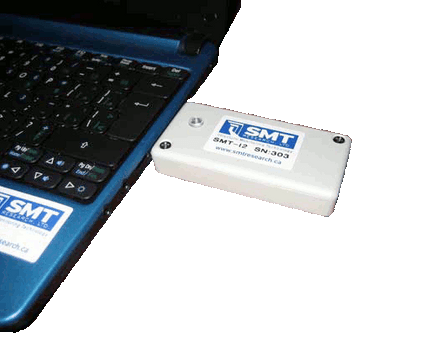

The SMT-I3 Wireless to USB device serves as the interface between Data Acquisition Units and the Building Intelligence Gateway (BiG).



Wireless data acquisition units communicate sensor readings to the Building Intelligence Gateway through an I3 interface. An I3 unit will automatically become a repeater when powered. If require, wired extensions can be used to relocate I3 units in areas where wireless coverage is intermittent or difficult to reach.



Click to view product datasheet

Applications

+

  • Live data collection and sensor analysis
  • Data extraction from datalogging sensors

Features

+

  • IEEE 802.15.4 Wireless to USB Interface to BiG
  • Wireless transceiver with 1000m line of sight communication
  • Activity LED indicates active connectivity
  • User configurable settings in BiG
  • Channel and Personal Area Network (PAN) can be modified to assist in managing multiple networks
  • Global timer setting. User can modify the sample rate timer allowing all SMT-A2's to inherit a new sample frequency
  • Radio transmit power can be adjusted to comply with specific radio transmission requirements

Functional Specifications

+

Electrical:

Wireless

Specification: IEEE 802.15.4

Working Frequency: 2.405GHz-2.48GHz

Output Power: 20dBm (100mW)

Output Range (free air): 1000m line of site. Powered repeaters can be added to extend range.

Max Nodes per coordinator: 32 (dependent on application density and application speed).



USB

USB: 1.0 Interface



Environmental:

Operating Temperature: 0° to 40°C / 32° to 104°F

Storage Temperature: -25° to 70°C / -13° to 158°F

Humidity: 5% to 100% RH non-condensing

Electrostatic Discharge (ESD): 8kVdc air, 4 kVDC contact (exposed inputs)



Safety/Regulatory:

SELV Separated Extra Low Voltage.

Contains FCC ID: OA3MRF24J40MA.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference

(2) this device must accept any interference received, including interference that maycause undesired operation
