MultiScan 48R

Optionally select specification before requesting quote

Product Description

The MultiScan™48R is a 48 channel resistance measurement device with 48 input channels capable CAN wired communication.



The WiDAQ 24-bit A/D converter and low noise high precision measurement circuitry facilitates data acquisition from a wide variety of resistance based sensors used for a variety of applications from conventional roof monitoring to dense sensor deployments in test labs.



Click to view product datasheet

Applications

+

  • Roof Monitoring - Conventional roof moisture monitoring

  • Flood Monitoring - Interstitial spaces and/or mass input monitoring solutions

  • Building Science Research - Test huts/labs requiring dense sensor deployments



See the Industrial WiDAQ datasheet for long term monitoring and custom applications.



Features

+

  • 48 resistance channels capable of reading wide moisture content ranges.

  • Sensor inputs use quick punch Bix terminations for fast, secure and dense sensor deployments.

  • Synchronizes with SMT Building Intelligence Gateway (BiG) or Tactical Intelligence Gateway (TiG) via a USB wired CANKey device.

  • ABS, PVC, or Metal custom mountings & enclosures

  • Low profile & low voltage hardware

  • The controller has the ability to power the entire network through CAN or other external power sources as required.

  • Portable Gateway, CAN, and Acquisition units are used during protracted roofing installations to validate night seals and construction related moisture levels within the assembly, long before final power and internet has been provided, exporting the data to Analytics for review and site repair as may or may not be needed.

  • Resistance measurements can be performed in either positive or negative polarity for the purpose of negating half cell voltages or diode effects in monitored structures.

  • Inputs are optically isolated from each other preventing external electrical noise influences.

Functional Specifications

+

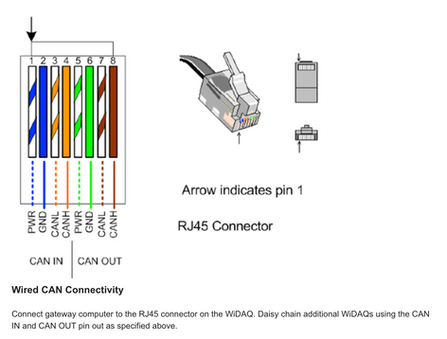

Communication Electrical/Performance: Wired CAN

Max Distance: 1000m 22 AWG control wire

Max Nodes: 128 nodes

CAN Interface: CAN 2.0B (ISO 11898)

CAN Speed: 10kbps Input Power 6VDC to 12VDC



Environmental

Operating Temperature: 0° to 40°C / 32° to 104°F

Storage Temperature: -25° to 70°C / -13° to 158°F

Humidity: 5% to 90% RH non-condensing

Electrostatic Discharge (ESD): 8kVdc air, 4 kVDC contact (exposed inputs) Induced AC: Maximum 2VAC induced on sensor lines.



Mechanical

Standard Enclosure

Dimensions: 12” x 12” x 2”

Weight: 200g

Interface

LEDs: Red/Green LEDs

Button: Power/Config Button



Safety

Safety Requirements: 12V SELV Separated Extra Low Voltage. See CAN p

Measurement/Electrical Performance

+

Resistance – Inputs 1-48

Range: 100Ω to 1KΩ

Resolution: 10Ω

Accuracy: ±5%



Range: 1KΩ to 10KΩ

Resolution: 100Ω

Accuracy: ±5%



Range: 10KΩ to 100KΩ

Resolution: 1KΩ

Accuracy: ±5%



Range: 100KΩ to 1MΩ

Resolution: 10KΩ

Accuracy: ±5%



Range 1MΩ to 10MΩ

Resolution: 100KΩ

Accuracy: ±5%



Range: 10MΩ to 100MΩ

Resolution: 1MΩ

Accuracy: ±10%



Range: 100MΩ to 1GΩ

Resolution: 10MΩ

Accuracy: ±10%
